Grounding Cable H07V-K 450/750V for Electrical Systems
Flexible H07V-K grounding cable rated at 450/750V, designed for safe earthing and internal wiring in industrial and electrical installations.
Our grounding cable meets H07V-K standards and is specially engineered for reliable grounding in solar power systems. Ideal for internal wiring in electrical cabinets, switchboards, motors, and other electrical equipment, this cable features high concentricity and superior flame-retardant properties, ensuring both safety and long-term stability for your projects.
Product Specifications

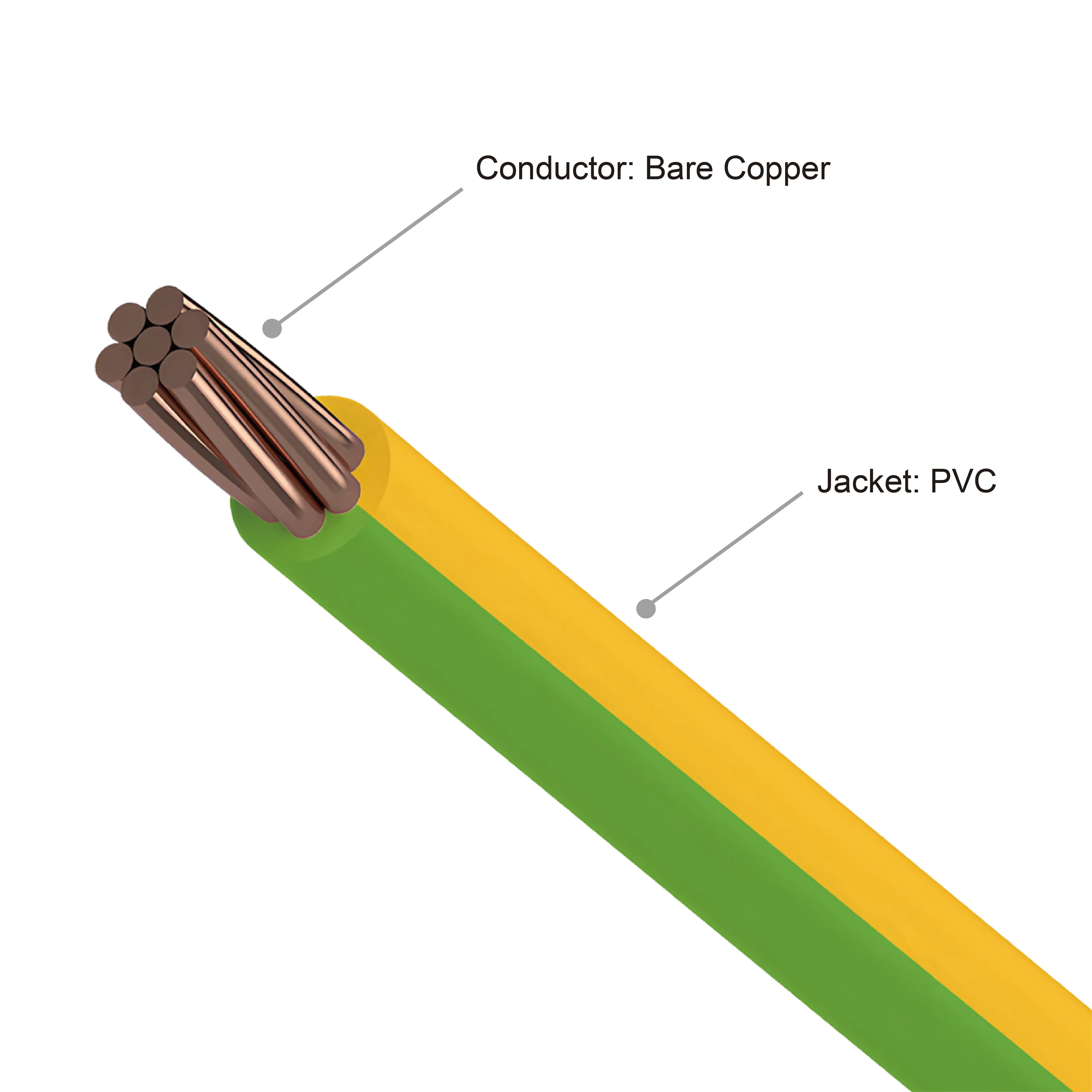

Conductor : Stranded Bare copper
Insulation : PVC, Yellow and Green
Rated temperature : -15℃ to 70℃
Rated voltage : 450/750V
Advantages
PVC, RoHS compliant
High flexibility
High flame retardant
Easy to peel and cut
TECHNICAL DATA
Rated temperature : -15℃ to 70℃
Rated voltage : 450/750V
Item Data
Item description(Part No.) | Cross Section(mm²) | Color | AWG(approx) | Insulation Thickness(mm) | Outer Dia(mm) | Conductor Resistance (Max. mΏ/m) |
|---|---|---|---|---|---|---|
11007140903 | 1 x 4.0 mm² | Yellow and Green | 12 | 0.80 | 4.30±0.2 | 4.95 |
11007160904 | 1 x 6.0 mm² | Yellow and Green | 10 | 0.80 | 5.10±0.2 | 3.30 |
11007110905 | 1 x 10 mm² | Yellow and Green | 8 | 1.00 | 6.40±0.2 | 1.91 |
11007110906 | 1 x 16 mm² | Yellow and Green | 6 | 1.00 | 7.70±0.2 | 1.21 |
FAQs
1. What is an H07V-K cable?
H07V-K is a flexible, PVC-insulated single-core wire rated for 450/750V. It is commonly used for internal wiring, grounding (earthing), and electrical installations where flexibility and flame resistance are required.
2. What applications are H07V-K grounding cables used for?
H07V-K grounding cables are widely used for protective earthing in industrial control panels, solar power systems, switchboards, machinery, and residential electrical installations. They are especially suitable for green/yellow coded PE wiring.
3. What are the main features of the 450/750V H07V-K grounding cable?
This cable offers high flexibility with fine-stranded copper conductors, good insulation resistance, flame-retardant performance, and easy stripping for efficient installation. It is designed to meet common requirements for fixed and protected wiring.
4. What conductor material is used in H07V-K cables?
H07V-K cables use high-purity, fine-stranded copper conductors with Class 5 flexibility, providing excellent electrical conductivity, durability, and ease of installation in confined spaces.
5. What insulation material is used in H07V-K grounding cables?
The insulation is made from high-quality PVC compound, offering reliable electrical insulation along with good resistance to heat, abrasion, oils, and common chemicals.
6. Can H07V-K cables be used in solar or photovoltaic systems?
Yes. H07V-K cables are commonly used as grounding or bonding conductors in photovoltaic systems, particularly in inverter grounding, control panels, and electrical enclosures where 450/750V ratings are suitable.
7. What color options are available for H07V-K cables?
The standard color for grounding applications is green/yellow (PE). Other colors such as black, blue, brown, red, or grey are also available to support different circuit identification requirements.
8. Why choose a professional H07V-K grounding cable supplier?
Choosing a professional supplier ensures consistent product quality, compliance with international standards, stable supply capacity, and support for custom specifications and large-scale electrical or solar projects.
