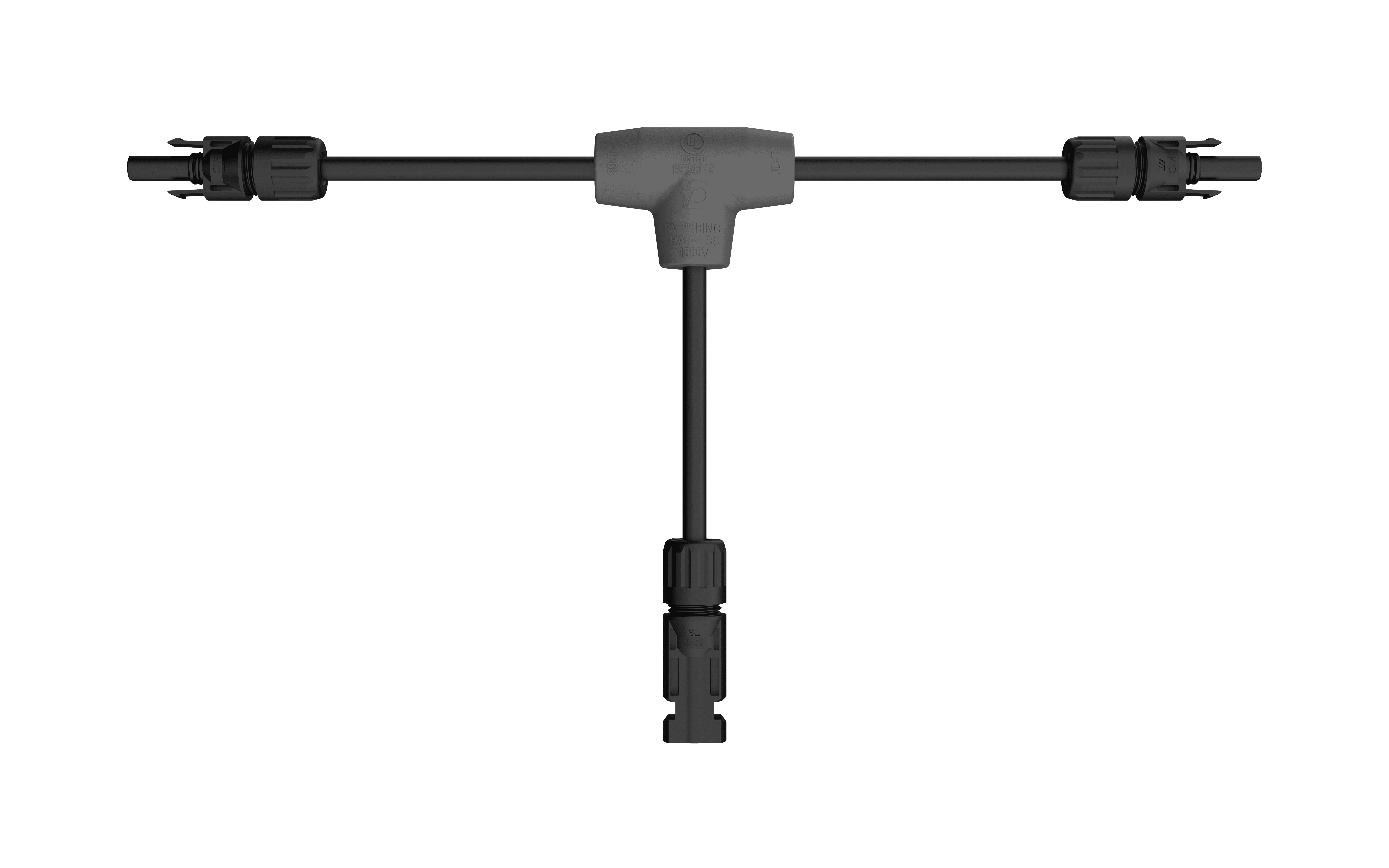

String PV Harness Series T – Plug-and-Play Solar Wiring Solution
String PV Harness Series T delivers a plug-and-play, pre-assembled design with high reliability, global compliance, and customizable configurations to optimize power transmission in solar PV systems.
The String PV Harness Series T is a pre-assembled, plug-and-play wiring solution designed to improve installation efficiency and power transmission performance in photovoltaic systems. Engineered with high-conductivity materials and a low-resistance structure, it ensures stable and efficient energy flow while minimizing electrical losses. Built to withstand UV exposure, extreme temperatures, and other environmental stressors, the Series T offers long-term reliability for demanding outdoor installations. With flexible options for cable length, connector type, and system configuration, it provides a tailored solution for a wide range of residential, commercial, and utility-scale solar projects.
Application
Wiring Solar Panels in Parallel
Rooftop and Commercial Installations
Large-Scale Utility Projects
Specific String Configurations
Construction
Main connector: Male and female connectors,
Branch connector: T-shaped branch, each branch featuring a standard male or female connector
Waterproof Seals: Waterproof and dustproof functionality
Feature: Dual-layer injection molding process for enhanced sealing
Options
Cable size from 6 AWG to 12 AWG
2kV Photovoltaic Copper Wire:#12，#10，#8，#6
Inline-fuse options: 1 A-65 A,Brands: Littelfuse,Adler,etc.
Connector
Multi-brand connectors compatibility: MC4, TS4, JM608, PV-ZH202B, S418, etc.
Connector Multi-brand connectors compatibility: MC4, TS4, JM608, PV-ZH202B, S418, etc
Packaging
T Kits and Fuseholders available (IP68 Rated)
Standards
UL9703
FAQs
Q1: What makes the String PV Harness Series T suitable for large-scale photovoltaic systems?
The String PV Harness Series T is designed for high-voltage PV applications where reliability and long-term performance are critical. Its robust structure and carefully selected materials help reduce connection risks and support stable operation in commercial and utility-scale solar projects.
Q2: How does the Series T String PV Harness improve installation efficiency and system performance?
The plug-and-play design simplifies on-site wiring and reduces installation time and labor requirements. Precision-matched connectors and a low-resistance design help ensure secure connections and efficient power transmission across the entire PV string.
Q3: Is the String PV Harness Series T compatible with different solar modules and inverters?
Yes. The Series T PV harness is designed to work with a wide range of industry-standard solar modules and inverter systems. Multiple connector options are available to support different project specifications and system designs.
Q4: What safety features are incorporated into the String PV Harness Series T?
The Series T harness is manufactured using flame-retardant and UV-resistant materials to support safe operation in outdoor environments. Its structured layout also helps reduce installation errors and supports safer handling during installation and maintenance.
Q5: How does the String PV Harness Series T perform in harsh environmental conditions?
The Series T is built to withstand challenging environmental conditions, including extreme temperatures, moisture, and prolonged UV exposure. This ensures reliable electrical performance and mechanical stability in long-term outdoor installations.
Q6: Can the String PV Harness Series T be customized for specific project requirements?
Yes. Customization options are available, including cable length, connector type, and system configuration. This flexibility allows the Series T harness to be adapted to different layouts, mounting systems, and project scales.
Q7: What is the typical service life of the String PV Harness Series T?
The Series T PV harness is designed for long-term use in photovoltaic systems. Its durable materials and construction support stable performance over many years, helping reduce maintenance needs and lifecycle costs.
Q8: How can I request pricing or technical support for the Series T PV Harness?
You can request pricing or technical assistance by contacting EcoLinker through the website inquiry form. Providing project details such as system size, quantity, and configuration requirements will help ensure accurate and efficient support.
